INSTALLATION PLATINUM KIT USE STEPS 1-6 / GOLD USE STEPS 1-3

STEP 1

Align "THE BULWARK" over the Deadbolt and lock opening, pre drill all nine holes with a 1/8" x 4" or longer drill bit to penetrate the stud behind the frame.

STEP 2

STEP 1

Install all nine of the 3-1/2" white screws into the pre drilled holes.

STEP 3

STEP 1

STEP 3

Install the lock shield lining up the openings for the Deadbolt and lock with the beveled edge facing out.
note: No need to pre drill

STEP 4

STEP 3

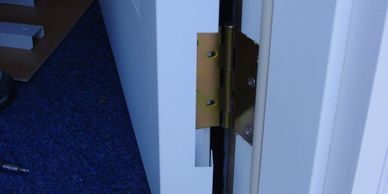

Install the hinge shield over the middle and bottom hinge on the doors edge.
note: No need to pre drill

STEP 5

STEP 4

STEP 5

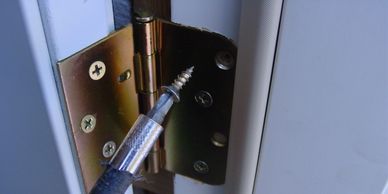

Remove the two short screws from the middle and bottom hinge on the frame side closest to the outside

STEP 6

STEP 4

STEP 5

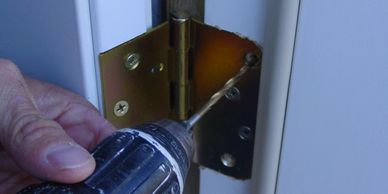

Pre drill the two holes in each hinge. Install the yellow zinc 3-1/2" into the pre drilled holes in the middle and bottom hinge

The Bulwark, is your first layer of home protection!

"The Bulwark" Door Kick in Protection
